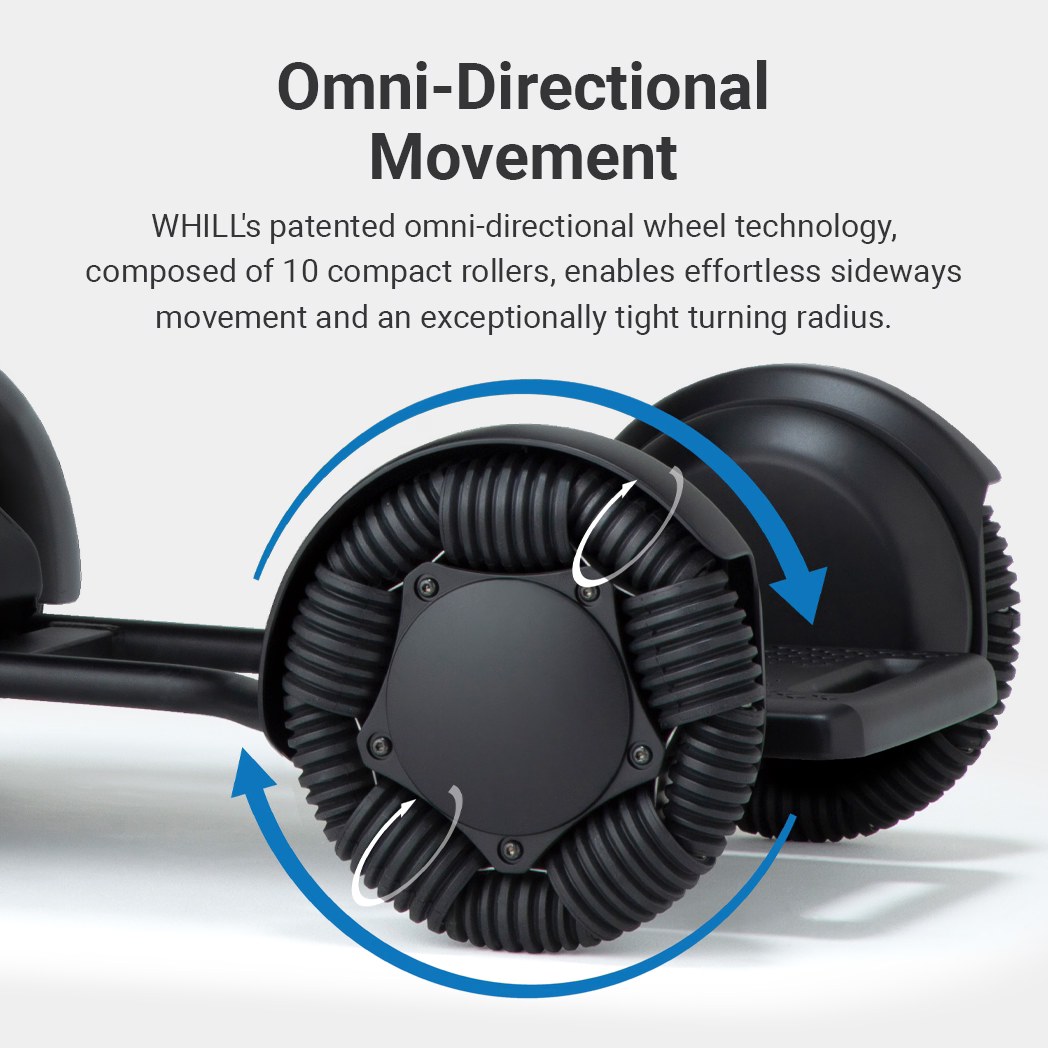

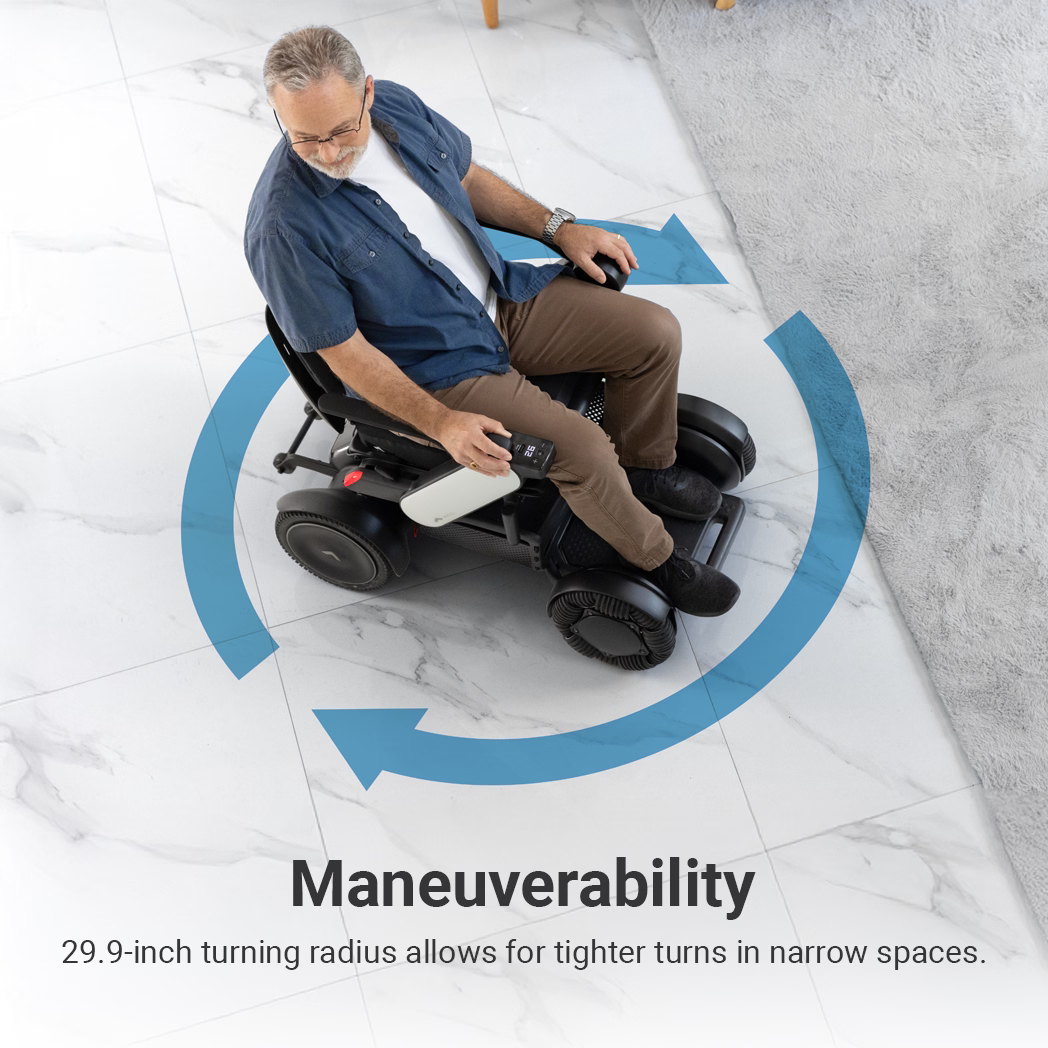

TIGHTER SPACES
Omni-wheels do the small-space work.
The front wheels roll in more than one direction, helping the C2 turn cleanly around furniture, counters and busy indoor routes.

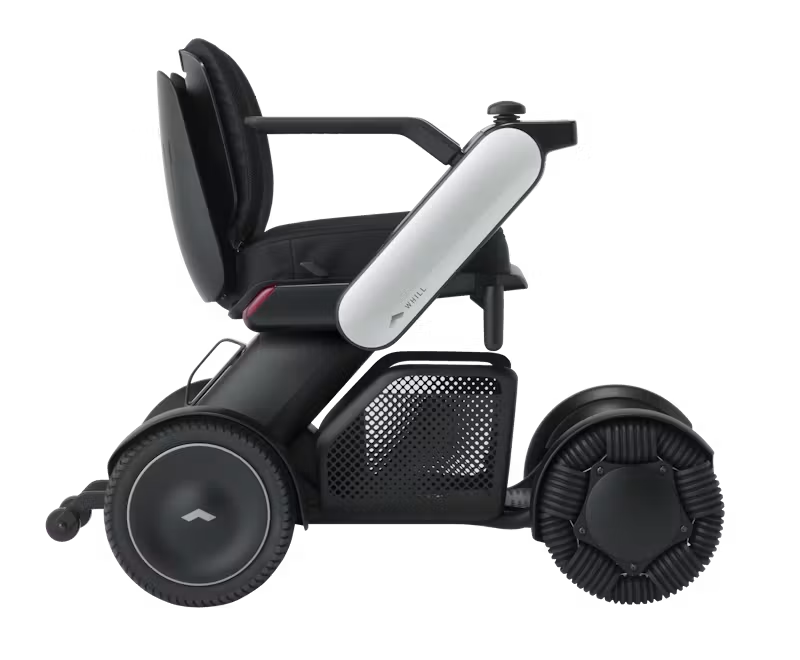

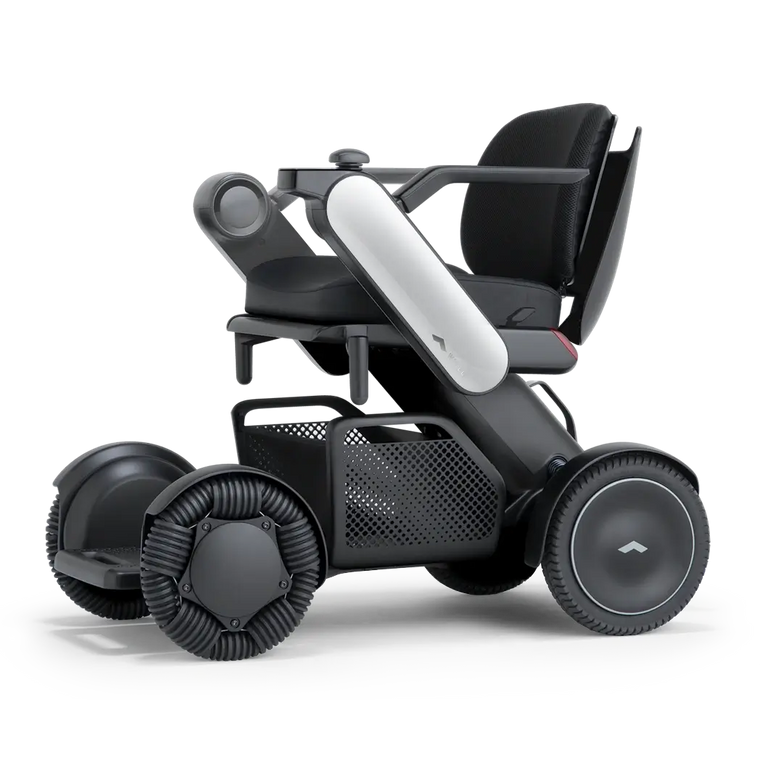

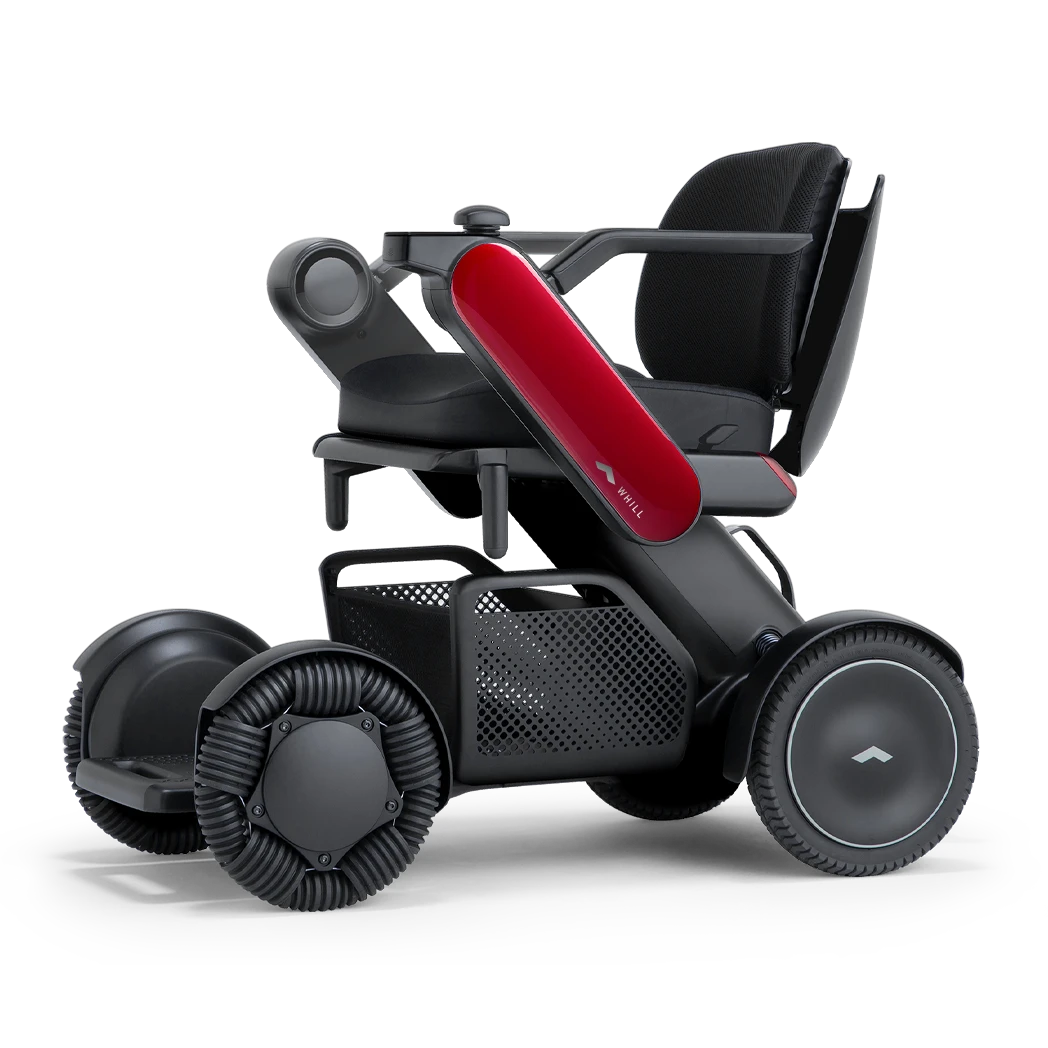

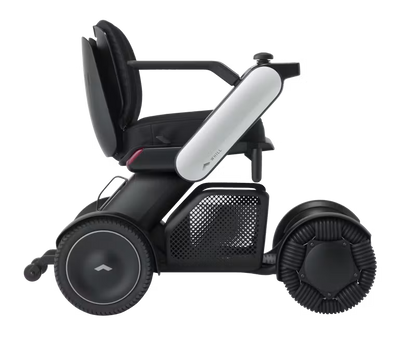

WHILL MODEL C2, MADE CLEAR
Confident turning, a composed ride, and a realistic transport plan.
Choose the Model C2 when everyday manoeuvrability and seating adjustability matter more than one-piece folding. These are the decisions worth making before you choose a configuration.
- Best suited to
- Homes, shops and community routes where a compact turn and suspension make the day easier.
- Plan before ordering
- Seat size, controller side and who will handle the heaviest separated piece.
A SETTLED RIDE
Each wheel can respond on its own.
Four-wheel independent suspension helps the chair stay composed as everyday surfaces change beneath it.

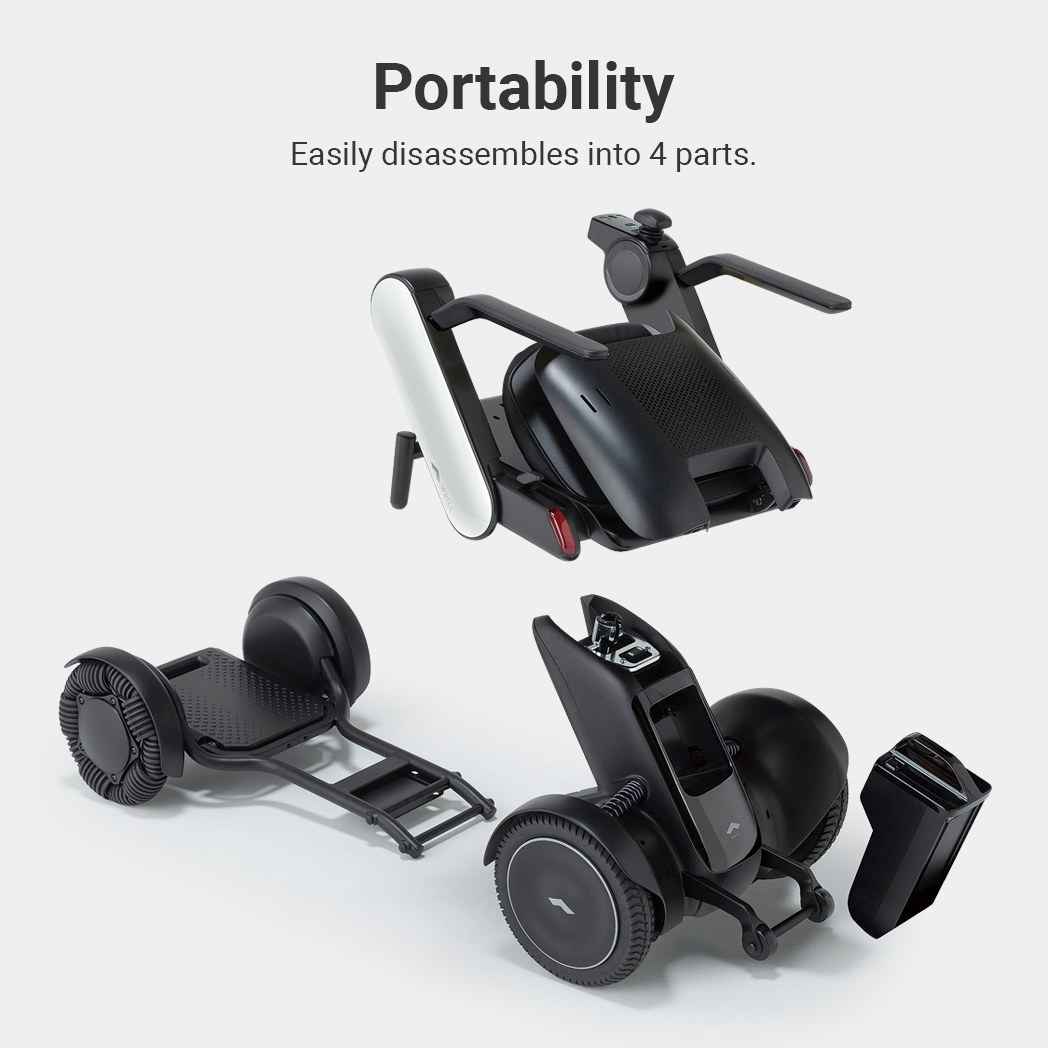

VEHICLE LOADING
It comes apart, but it is not a featherweight.
Four-step disassembly can simplify loading. Check the heaviest-piece figure in the specifications below before anyone commits to lifting.
CHOOSE THE FIT
Seat first. Controller side second.
- 1Choose the seat.
Compare the 16 × 16, 18 × 18 and 20 × 18-inch options against the support and clearance you need.
- 2Set the posture.
Seat height and back angle are adjustable, so the final setup should match the person using the chair.
- 3Choose the controller side.
Select right or left before ordering rather than treating it as an afterthought.
For complex posture, pressure-management or positioning needs, confirm the configuration with a qualified seating professional.
CHECK THE NUMBERS ONCE
Model C2 specifications
Open the group you need. Fit and transport come first because those are the details most likely to change the ordering decision.

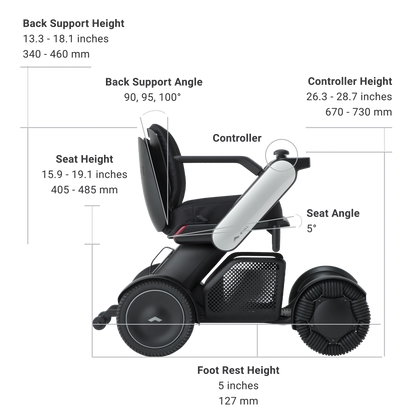

Fit and dimensions
Seat sizes16 × 16, 18 × 18 or 20 × 18 in
Overall width21.8 / 23.6 / 25.6 in by seat
Overall length38.8 in
Seat height15.9 to 19.1 in
Back support angle90° / 95° / 100°
Controller sideRight or left
Performance
Maximum speed8 km/h
Driving rangeUp to 20 km
Maximum user weight300 lb
Turning radius29.9 in
Rated incline10°

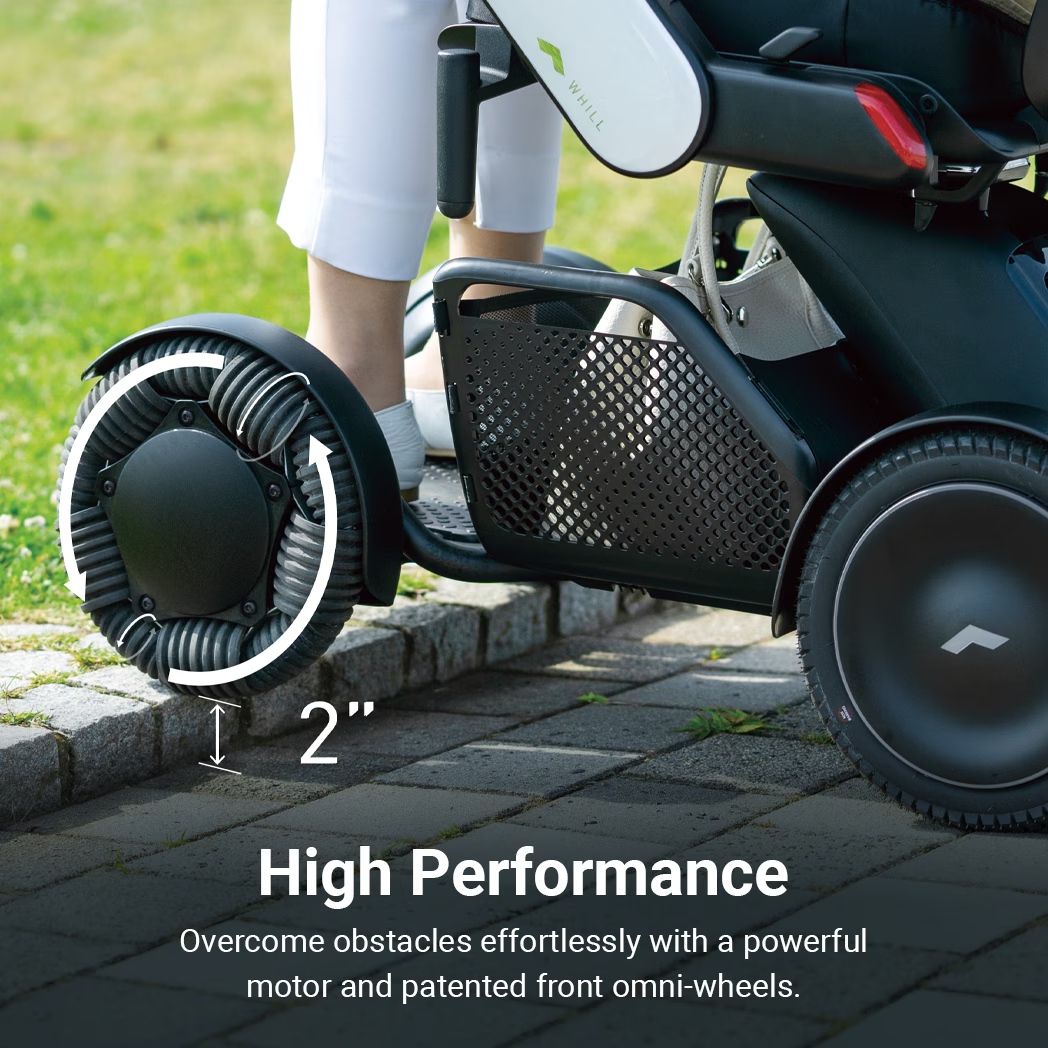

Obstacle clearance2 in
Ground clearance3 in
Transport, battery and weather
Device weight114.4 / 116 / 116.4 lb by seat
Heaviest separated component42.8 lb
Battery weight6 lb
Charge timeUp to 5 hours
SuspensionFour-wheel independent
Weather testingIPX4; not waterproof
Air travelRemovable battery; airline confirmation required
Specifications are based on current WHILL Canada Model C2 materials. Range varies with load, route, temperature, speed and battery condition. The operating guide controls safe-use limits.
WHILL Model C2 features and functions
Frequently Asked Questions
-
Yes. WHILL specifies it for indoor and outdoor mobility, with a tight turning radius, four-wheel suspension and 2-inch obstacle clearance. It is not intended for sand, mud, snow or frozen paths.
-
It separates in four steps. The heaviest component is 42.8 lb, so measure the cargo opening and confirm that this lifting weight is manageable.
-
Up to 20 km per charge. Actual range varies with user weight, terrain, temperature, speed and battery condition.
-
Choose the seat width and depth that provide comfortable support without restricting movement. Care Made can help review the 16, 18 and 20-inch configurations before ordering.
-
WHILL identifies the battery as approved for air travel, but every airline makes its own final decision. Contact the airline before travelling and provide the battery documentation it requests.
THREE NEARBY CHOICES
Which WHILL setup fits your day?
Compare the differences that change the experience: support, seating choice and how the chair gets into a vehicle.
You are viewing
Adjustable everyday C2
Model C2
- Primary reason
- Manoeuvrability and seating choice
- Seating
- Three verified seat sizes
- Loading style
- Separates into four pieces

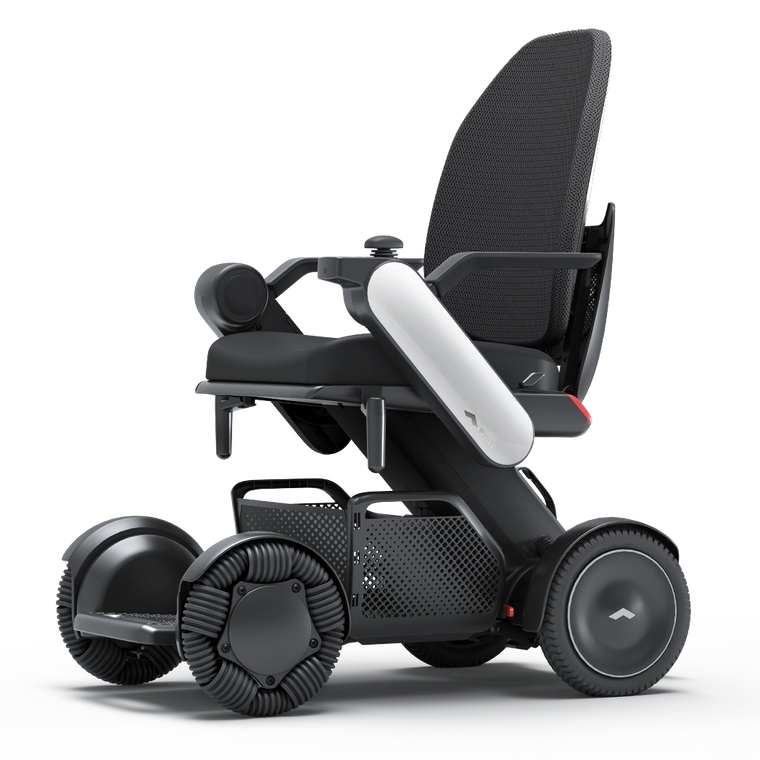

Taller upper-back support
C2 High Back
- Primary reason
- More upper-back contact and contour
- Seating
- 18 or 20-inch seat with 20-inch padded back
- Loading style
- Same four-piece C2 base
Carbon folding portability
Model C Lite
- Primary reason
- Compact carbon fold with omni-wheels
- Seating
- Support and controller position can be adjusted
- Loading style
- Folds upright and rolls while folded
