SKU:JCARBONHDRED1001

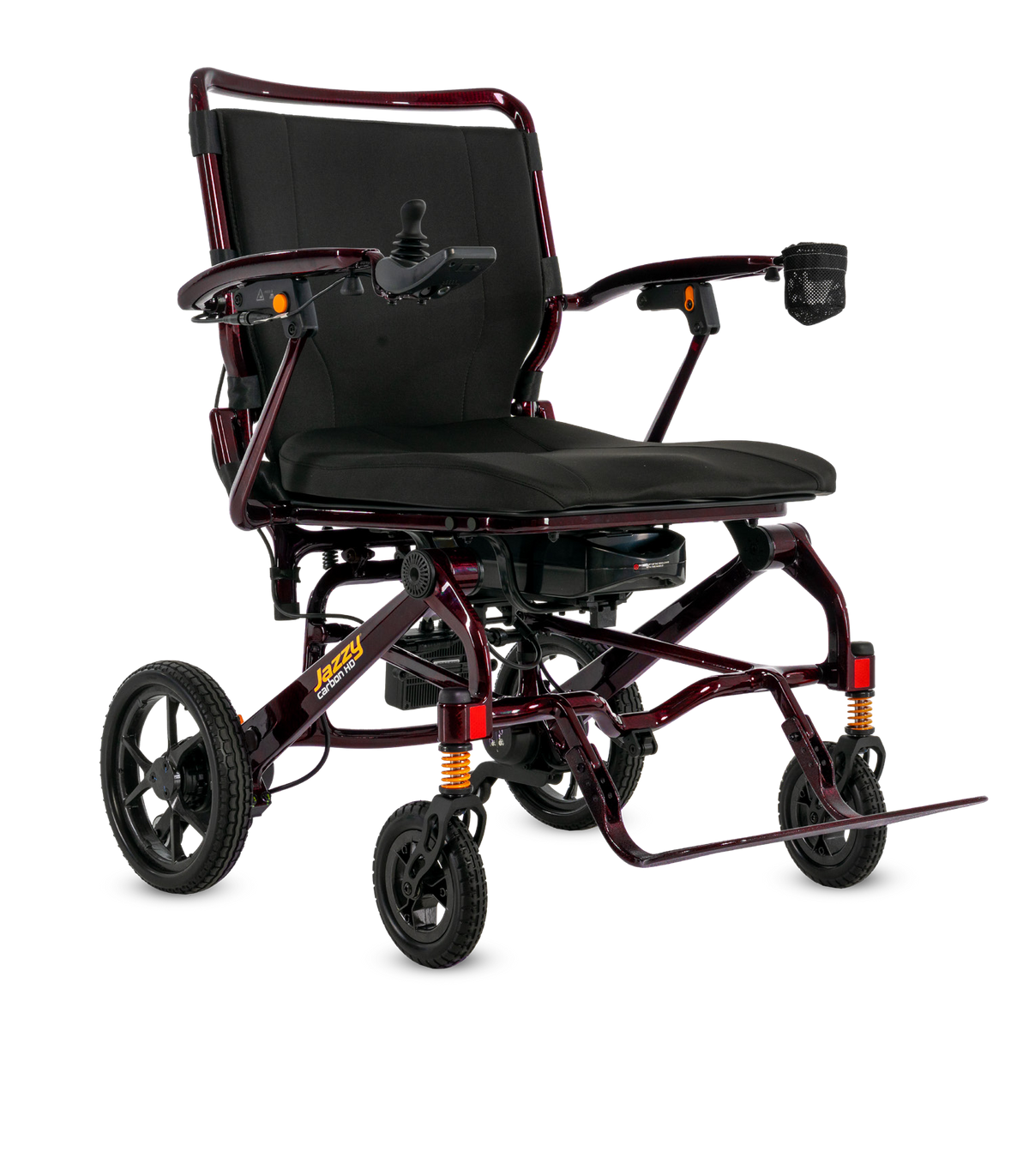

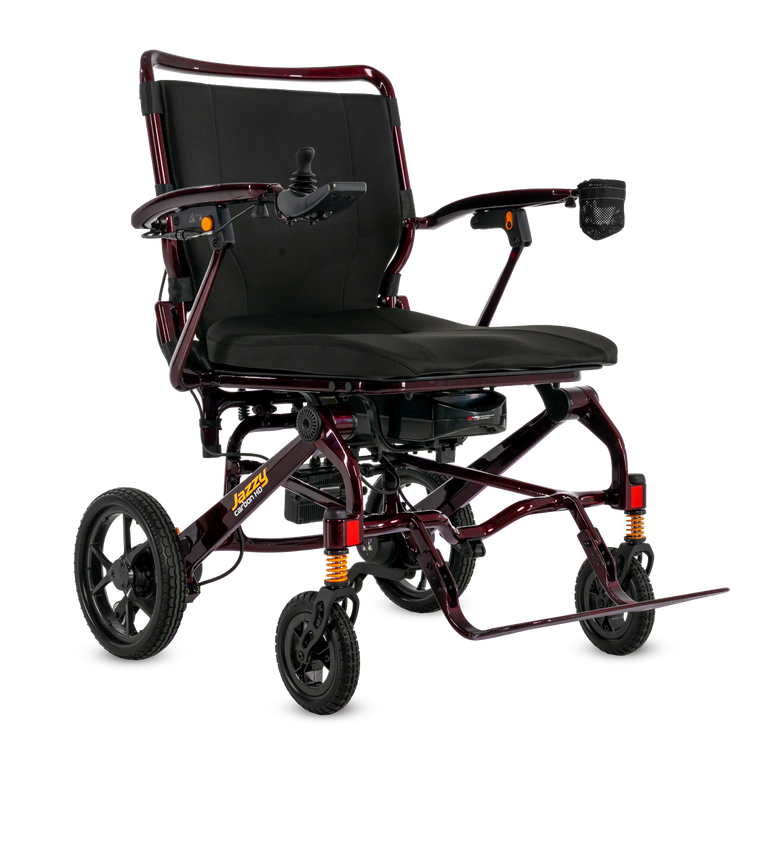

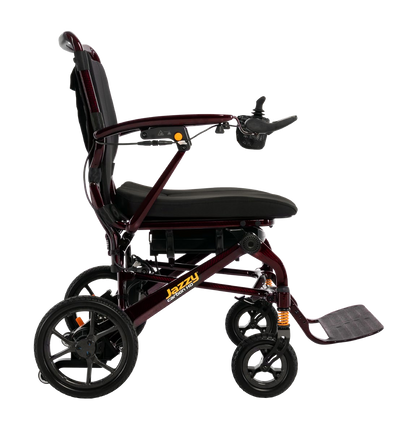

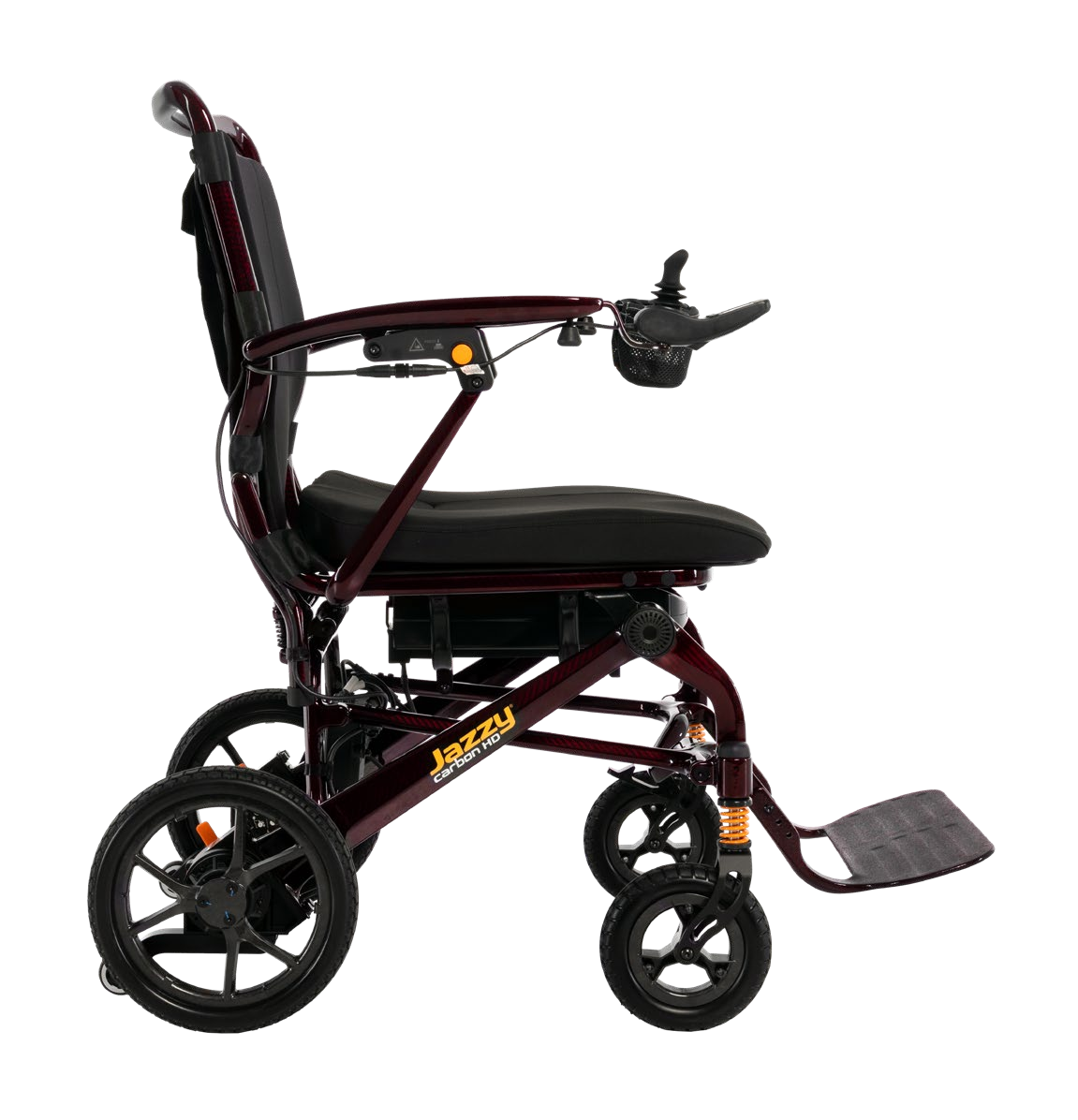

Pride Jazzy Carbon HD Folding Power Wheelchair
30-day returns
Need Help Choosing?
Talk to a real person: compare options, check delivery details or place your order by phone.
Couldn't load pickup availability
Quick Answer
The Pride Jazzy Carbon HD combines a folding carbon fibre frame, a 400 lb capacity and a 20 × 20-inch seat. Front and rear suspension, a padded backrest and an adjustable foot platform support everyday outings. Its 32.2 lb transport weight excludes the battery and includes the standard seat with accessories removed; the standard battery weighs approximately 7.5 lb.
The carbon fibre frame folds with a locking mechanism. The LCD joystick has a USB-C port and puddle light. A standard 24 V 20 Ah lithium battery and charger are included, along with a removable seat cushion, mesh cup holder and adjustable lap belt.
Size and travel: The overall width is 26.4 inches. The standard 20 Ah battery is not presented as airline compliant; confirm the exact battery and airline requirements before travelling.
For setup, transfers, charging and safe operation, read the Jazzy Carbon HD owner manual. Pride's Canadian brochure and Jazzy Carbon HD page have more detail, or explore more from Pride Mobility.
- 32.2 lbchair without
battery - 400 lbweight
capacity - 20 inseat width
and depth
Extra room on a folding carbon frame
Where the extra comfort comes from.

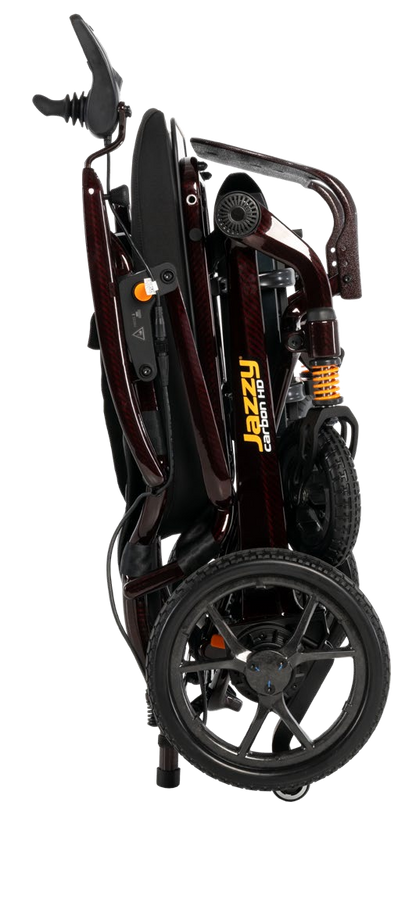

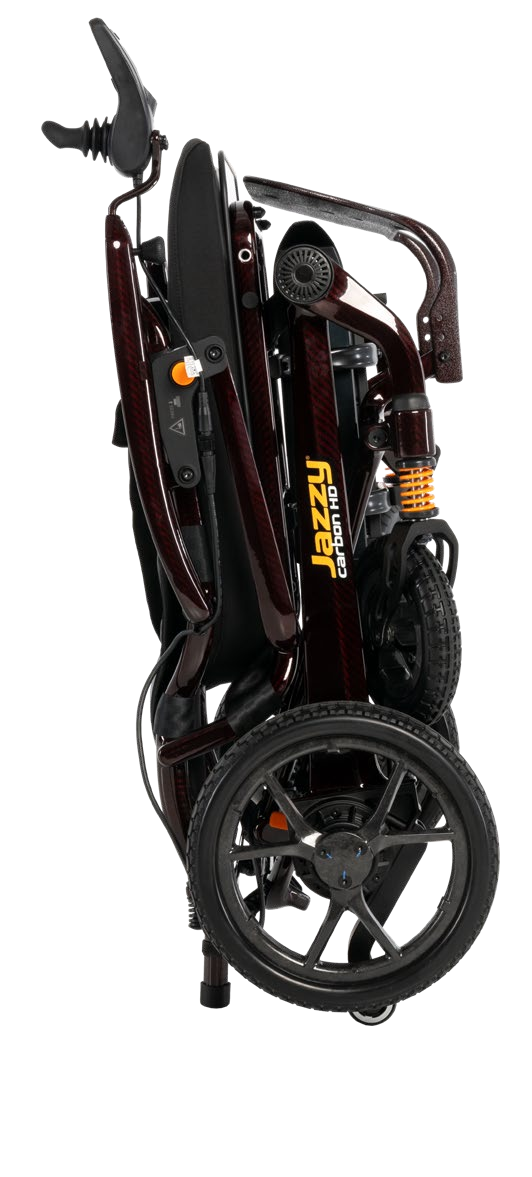

Folds and locks shut
The carbon fibre frame folds in seconds and locks in place. Folded, it measures 31.3 × 26.4 × 13 in.
Suspension at both ends
Front and rear suspension give a smoother ride over varied ground.
Padded back, wide footrest
The seat back is padded, the cushion lifts out, and the extra-wide foot platform adjusts to fit you.
A joystick with a screen

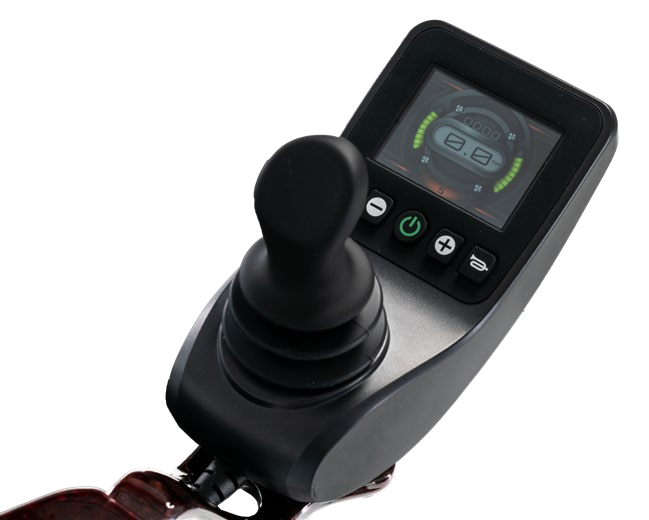

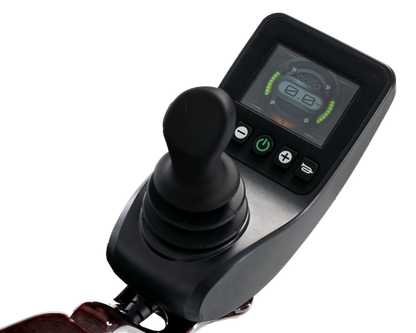

The quick-disconnect LCD joystick has a digital display, a USB-C port and a puddle light.
Flip-up arms, seat-back pocket
The lightweight carbon fibre arms flip up, and a storage pocket sits on the back of the seat.
Two colours

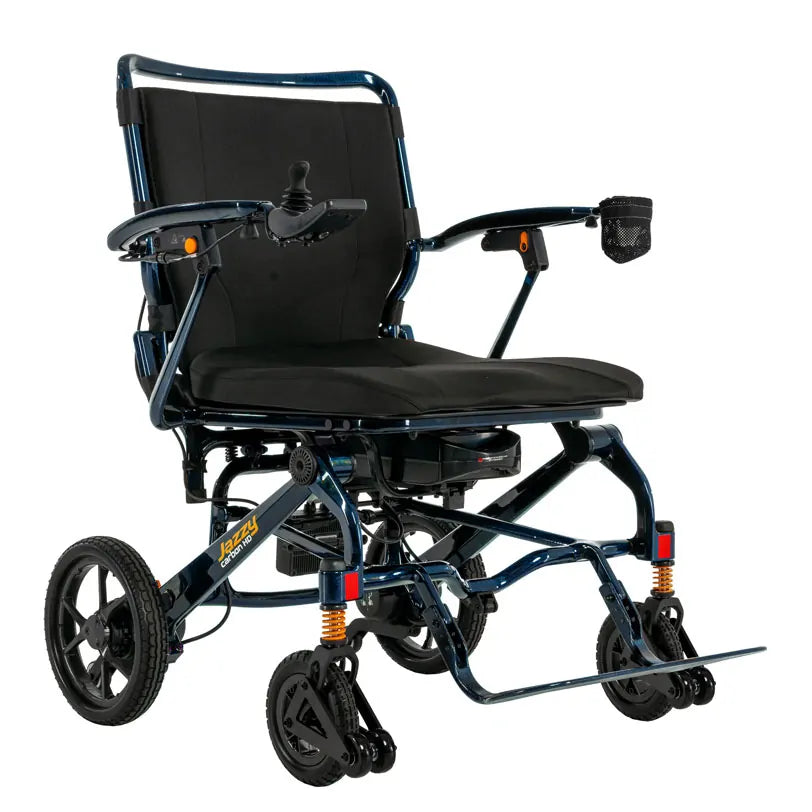

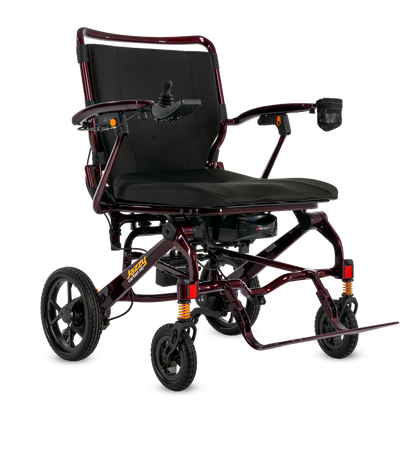

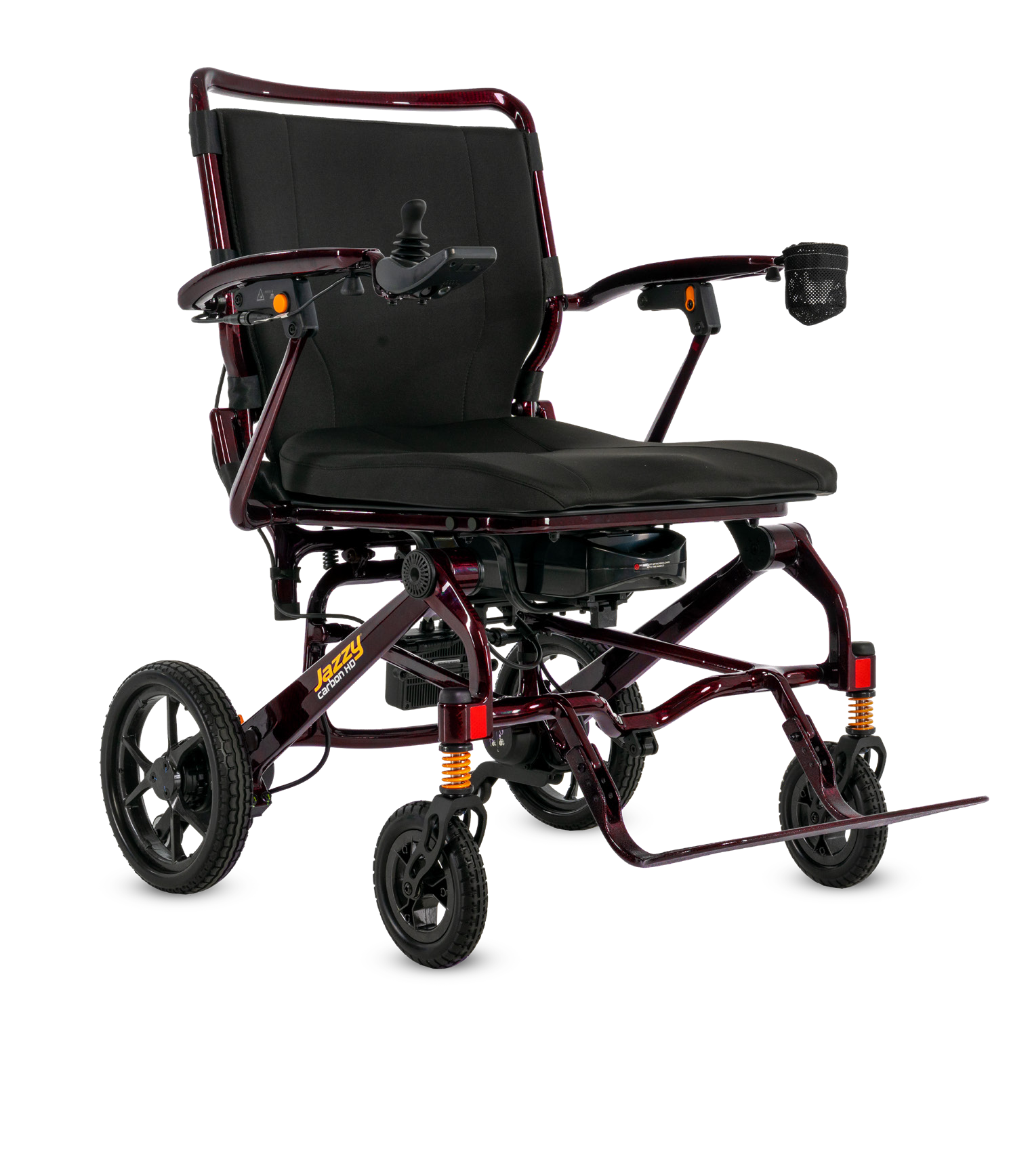

Choose Black Cherry, or Night Sky as shown here.
Swipe for more →
EXACT-MODEL SPECS
Key specifications
Clear manufacturer figures, grouped for quick scanning.Weight and dimensions+
Chair net weight32.2 lb without battery (standard seat on, all accessories removed)
Outside width26.4 in
Folded size31.3 × 26.4 × 13 in
Unfolded size36.81 × 26.4 in (length × width)
Weight with battery39.7 lb
FrameCarbon fibre, folds and locks
Performance+
Weight capacity400 lb
RangeUp to 20 km per charge
Top speed6 km/h
Turning radius36.4 in
SuspensionFront and rear
ControlsQuick-disconnect LCD joystick with digital display, USB-C port and puddle light
Seating+
Seat size20 × 20 in
Seat cushionRemovable
BackrestPadded
Foot platformExtra-wide, adjustable, 17.25 × 5.9 in
ArmrestsFlip up, carbon fibre
StoragePocket on the back of the seat
Also includedMesh cup holder and adjustable lap belt
ColoursBlack Cherry or Night Sky
Battery and travel+
Battery24 V / 20 Ah lithium-ion
Battery weightAbout 7.5 lb
Charger2 A off-board, included
Air travelStandard 20 Ah battery not listed as airline compliant; an optional 12 Ah airline-compliant battery is sold separately
Official manufacturer video

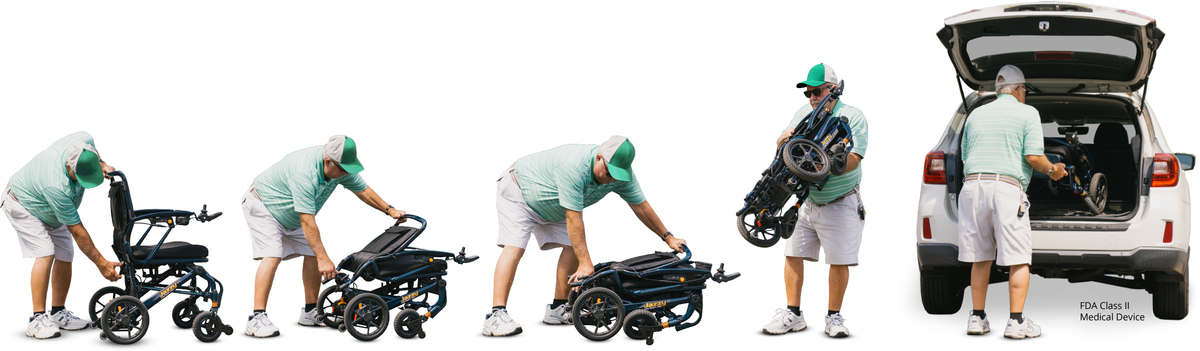

How the Jazzy Carbon HD folds
The lift that matters
32.2 lb chair, 7.5 lb battery.
Two lighter lifts: the folded chair first, then the battery on its own. The chair figure counts the standard seat with all accessories removed.
Frequently Asked Questions
-
The published 32.2 lb transport weight is without the battery, includes the standard seat and has all accessories removed. The battery weighs approximately 7.5 lb. Check your own lifting ability and vehicle access when planning transport.
-
Do not assume the standard 20Ah lithium battery is airline compliant. Pride lists an additional travel battery as an accessory, but airline approval is still required. The additional accessory is not included in this standard configuration. Confirm the exact chair and battery with your airline before each trip.
-
The overall chair width is 26.4 inches. The seat is 20 inches wide and 20 inches deep. Measure your narrowest doorways and turning spaces, as well as your vehicle opening, before ordering.
-
The standard configuration includes a 20Ah lithium battery, charger, removable seat cushion, mesh cup holder and adjustable lap belt.
-
Pride lists a range of up to 20 km. Actual range varies with rider weight, terrain, battery condition, weather and driving behaviour; it is not a guaranteed distance.
Pride folding power chairs
Compare Options
Jazzy Carbon HD
Room & capacity

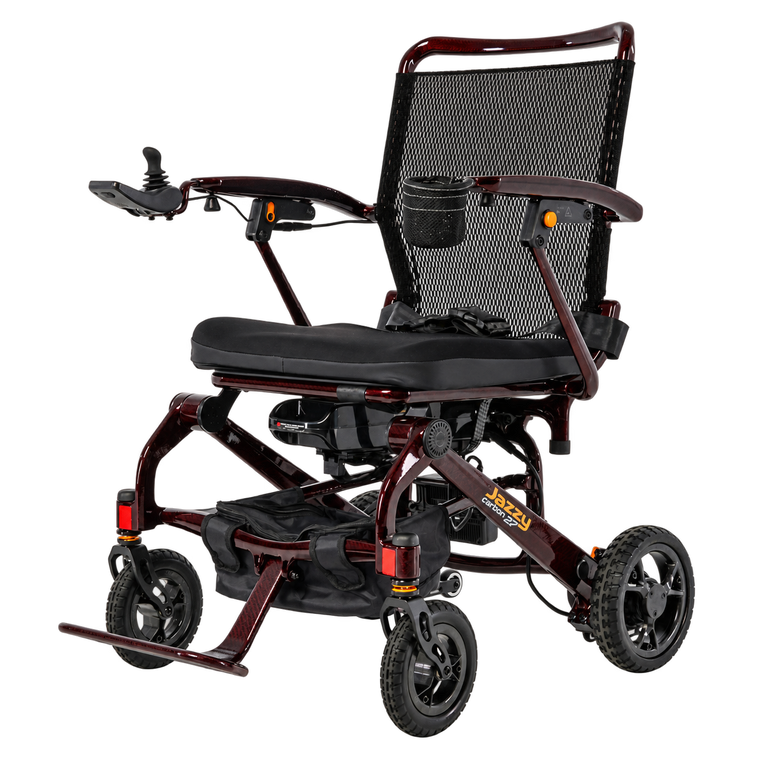

Jazzy Carbon 27
Lightest lift

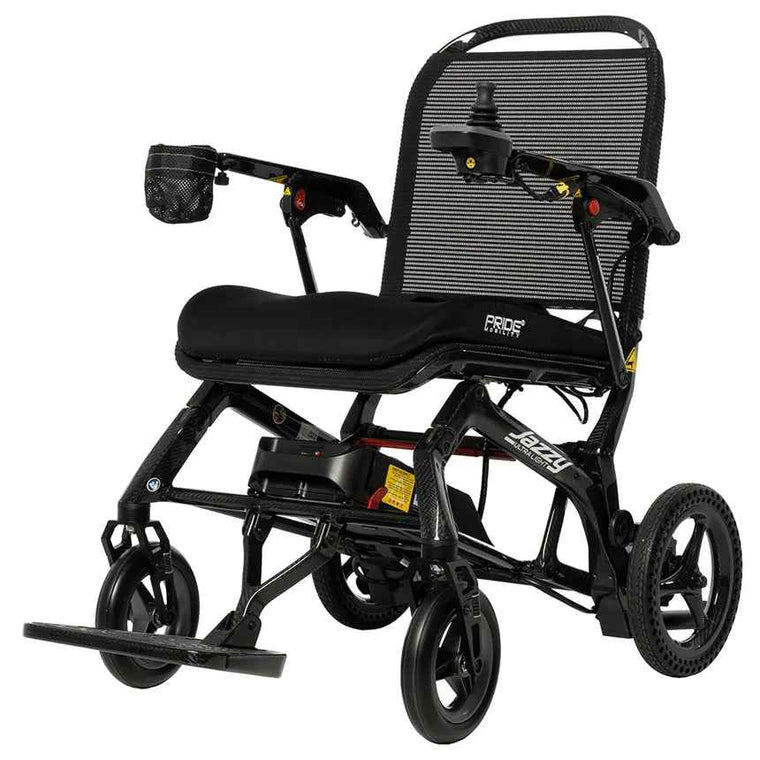

Jazzy Ultra Light
